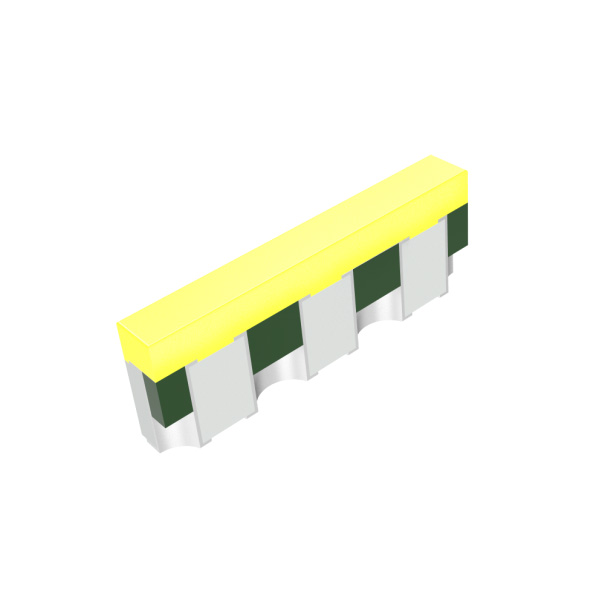

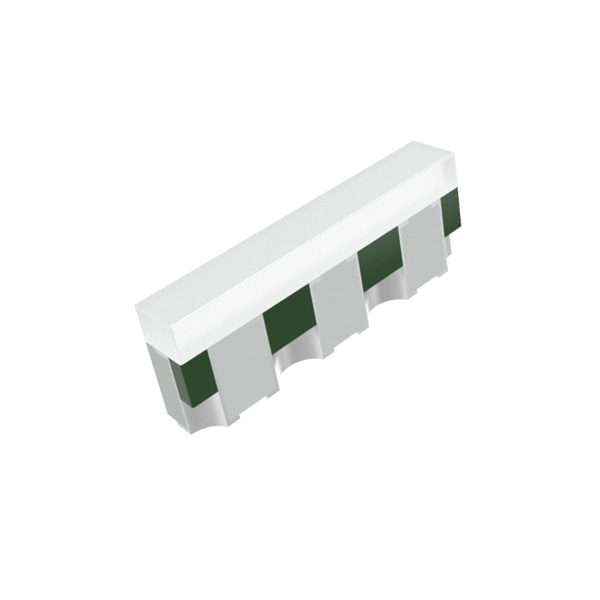

3004
| Product information | |||||||||
| No. | Sort | Product Name | Dimension (mm) | Emitted Color | Forward current(mA) | Forward Voltage(V) | Luminous Intensity(mcd) | Dominant Wavelength/CIE | |
| 1 | CHIP | HW3004RSGHBCHW-C01 | 3.0*0.4*1.0 | RGB | 20 | R:1.8-2.4 G:2.7-3.5 B:2.7-3.5 | R:295-1575 G:730-2110 B:280-1560 | R:613.5-625.5 G:520-535 B:465-475 |  |
| 2 | CHIP | HW3004YWN2C-CU2501 | 3.0*0.4*1.0 | YELLOW&WHITE | 20 | Y:1.8-2.4 W:2.6-3.4 | Y:55-200 W:460-1300 | Y:580-595 W:X-0.27typ Y-0.23typ |  |
| 3 | CHIP | HW3004RGN2C-CU3501 | 3.0*0.4*1.0 | RED&GREEN | 20 | R:1.8-2.4 G:2.6-3.4 | R:220-600 G:460-1000 | R:615-630 G:515-530 |  |
| 4 | CHIP | HW3004UWD01-T28290 | 3.0*0.4*1.0 | WHITE | 20 | 2.7-3.1 | 2500-3100 | X:0.29typ Y:0.275typ |  |
