Floor Sweeper
Application Notes
Intelligent sweeping robots are new floor and carpet cleaning appliances designed for modern home environments, using rechargeable batteries as a power source and combining cleaning and vacuuming functions. The basic architecture of a sweeper robot usually includes a central processor, power/battery management unit, battery charger, wireless communication module, human-machine interface, sensors and drive modules (brush and brushless motors). As the market and application requirements further improve, motor drive and lithium management are also developing towards high power density, miniaturization and long continuous operation time, which firstly requires reliable and energy efficient power devices, and secondly new package shape to achieve smaller size design is also very important.

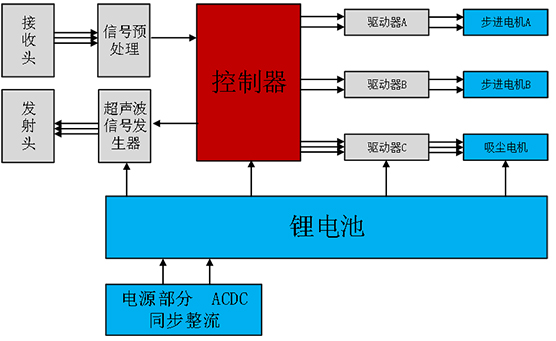

Line Diagram
Recommended Products
Recommended Products:
AC/DC Charger MOS:
MOSFET: VDS=650V-700V Ron@10V(max)=800mΩ-2400mΩ HWS10SN650H86K,
Vacuum cleaner motor:
N-channel SGT MOS: VDS=30V Ron@10V(max)=1.8mΩ-7.1mΩ
hws85sn30d32q,, hwh12sn30d20q
Li-ion Battery Charge/Discharge MOS:
N-channel Trench MOSFET: VDS=30V Ron@10V(max)
<11mΩ HWS45SN60S10Q, HWH12SN60D41Q
